EASYIO: Easy Input and Output Platform for Matlab/Simulink
The EASYIO platform is the USB version of the HILINK platform and RAPCON platform. It is a complete and low-cost real-time development package for both educational and industrial applications that do not require high sampling rates. The platform achieves real-time operation with sampling rates up to 1024 Hz.
Applications
- Real-time signal analysis, synthesis, processing and visualization
- Parameter tuning and optimization
- Modeling, analysis and design of control systems
- Real-time control
- Hardware-in-the-loop simulation
- Real-time rapid control prototyping
- Teaching concepts and carrying out experiments in signals and systems labs
- Real-time data acquisition
- Mechatronics
Features
- Compatible with Matlab R2007b through Matlab R2023b
- Power supply: 6 − 15 V, minimum 0.15 A, regulated
- Interface: USB 2.0 or later
- Analog inputs: A0 – A7, 0 − 5 V analog, 12 bit resolution
- Analog outputs: B0 – B1, 0 − 5 V analog, 12 bit resolution
- Digital inputs: D0_d0 – D0_d7, 0 − 5 V digital, 8 lines
- Digital outputs: G0_g0 – G0_g7, 0 − 5 V digital, 8 lines
- Capture inputs: C0 – C1, 0 − 5 V digital, 16 bit resolution
- Frequency outputs: F0 – F1, 0 − 5 V digital, 16 bit resolution
- Encoder inputs: E0 – E1, 0 − 5 V digital, 16 bit resolution
- Stepper output: S0, 0 − 5 V digital, 16 bit resolution
- Pulse inputs: K0 – K1, 0 − 5 V digital, 16 bit resolution
- Pulse outputs: H0 – H1, 0 − 5 V digital, 16 bit resolution
- Sensor inputs: I0 – I1, 0 − 5 V digital, 16 bit resolution
- Servo outputs: J0 – J1, 0 − 5 V digital, 16 bit resolution
- General pulse inputs: M0 – M1, 0 − 5 V digital, 16 bit resolution
- General pulse outputs: N0 – N1, 0 − 5 V digital, 16 bit resolution
- File inputs: U0 – U7, digital, int16 or float64 data format
- File outputs: V0 – V7, digital, int16 or float64 data format
- Filtered pulse outputs: L0 – L1, 0 − 5 V analog
- H-bridge outputs: P0 – P1, 0 − (supply voltage) V digital, 5 A
- Voltage regulator output: VDD, 5 V, 0.25 A, regulated
- Sampling rate: up to 1024 Hz
- Size: 10.16 cm x 7.62 cm (4.0'' x 3.0'')
- Weight: 43.9 g (1.55 oz)
Requirements
- PC with Windows XP or later with a USB port
- Matlab R2007b or later with Simulink, Real-Time Workshop (renamed as Matlab Coder and Simulink Coder in Matlab R2011a and later) and Real-Time Windows Target (renamed as Simulink Desktop Real-Time in Matlab R2015a and later)
- It can be used with the Normal Mode Soft Real-Time Library without Real-Time Workshop, Matlab Coder, Simulink Coder, Real-Time Windows Target and Simulink Desktop Real-Time
- EASYIO hardware (real-time control board) 1.1 or later
- EASYIO software 1.1 or later
- Power supply (regulated, 6 − 15 V, at least 0.15 A excluding the current requirements of the external loads)
Notes
- With USB, the maximum sampling rate is limited to 1024 Hz.
- This is a limitation inherent to USB technology, Windows and Matlab, but not EASYIO.
- Despite this limitation, the EASYIO platform can be used to control the Magnetic Levitation System, DC Motor with Encoder System and Repulsive Magnetic Levitation System.

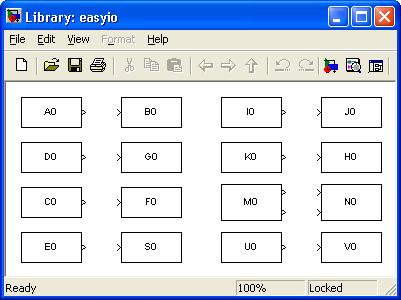

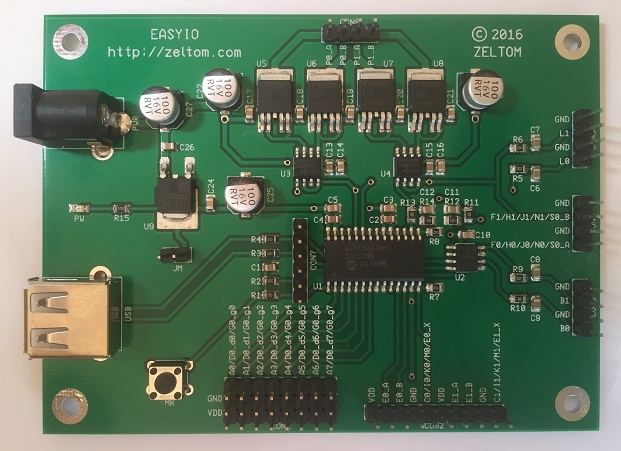

EASYIO Board with Simulink Library, Power Supply and USB-to-serial Adapter
